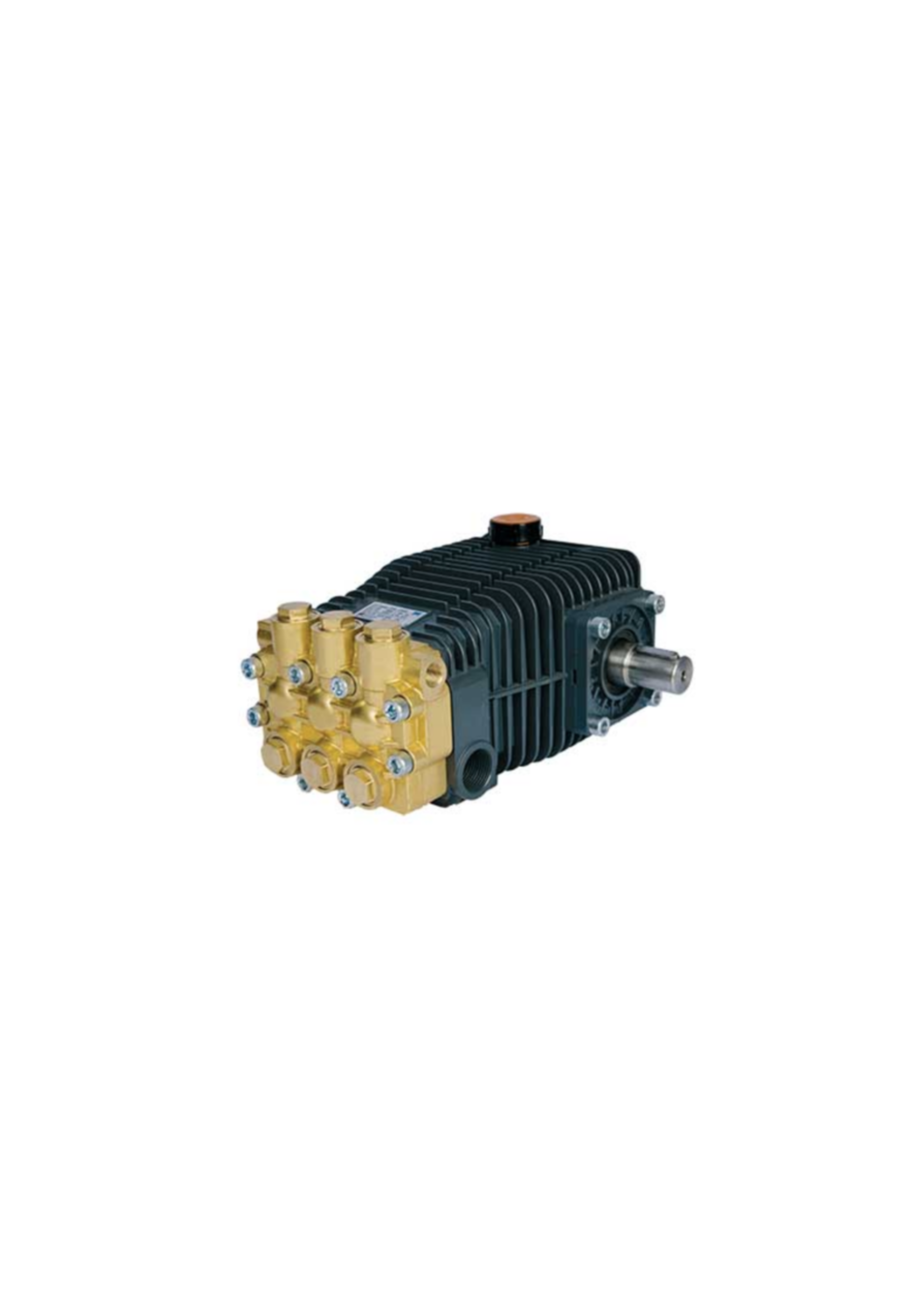

Bertolini RAS4482 Premium Piston Pump
Right Drive Shaft
Required Horsepower: 25 HP
Max Flow: 31 Litres per minute
Max Pressure: 4300 psi
Speed: 1725 RPM
Shaft Size: 30mm Solid Shaft
Weight: 18.5kg
The superior construction, the outstanding material quality, the innovative technology solutions Bertolini provide, long life components and easy maintenance.
Features:
Two sight glasses
O-ring groove in cover crankcase
Double cylindrical roller bearing
Forged crankshaft
Circlips of piston pins/connecting rods
Plunger rod in stainless steel, tenifer treatment
2 oil seals
innovative oil seal adaptor
Innovative new valve cap design unscrewing/tear resistant
White ceramic plungers
innovative suction manifold
Sealed room between crankcase/head (patented)
Efficient volumetric check valves
New bolt design to lock the ceramic piston
Bronze connecting rods with extra length of head rods
Drive system:
4 pole electric motors
Petrol engine gear box or belt drive
Diesel engine gear box or belt drive
Hydraulic drive
Applications:
Industrial applications
In-plant stationary systems
Trailer mounted cleaning systems
Drain cleaners
multiple gun washing station
High flow pressure washers
Benefits:
Easier to monitor oil level
Increases life of pump
Increases load resistance to work tightly and constantly on the right tolerances of the pins and conrods
Superior strength surface. Increases resistance and reduces wearing to avoid water leaking into the oil
Deeper 0-ring prevents o-ring extrusion, water mixing with oil and increases endurances
99.5% alumina ceramic in three different size.
Improves cooling & increases area of recycling the seals leakages
Allows perfect suction feed of high/low pressure seals in constant wet conditions, increases resistance even to dry conditions
Completely in stainless steel, superior strength in any condition
Prevents piston from unscrewing
Better alignment
30mm Shaft
Weight: 18.5kg
